It’s really important to know the weight of your RV/motorhome for numerous reasons. However, the information that you need is often hard to come by. That’s why I’ve written this blog post, to pull all the Entegra RV/motorhome weights into one place.
I have included three important weight-related pieces of information for each RV/motorhome contained within this blog post: Rear GAWR, front GAWR, and GVWR.
Rear GAWR: GAWR stands for gross axle weight rating. This is the maximum weight that can be placed on an individual axle. Therefore, the rear GAWR is the maximum weight that you can place on the rear axle.Front GAWR: GAWR stands for gross axle weight rating. This is the maximum weight that can be placed on an individual axle. Therefore, the front GAWR is the maximum weight that you can place on the front axle.GVWR: GVWR stands for gross vehicle weight rating. The GVWR of your vehicle is the maximum loaded weight, as determined by the manufacturer.
To make your life easier, this blog post compiles the rear GAWR, front GAWR, and GVWR for all the RVs listed below. Select your motorhome from the list below to be taken to the weights for your recreational vehicle:
Entegra Coach RV Vision weights: Entegra Coach RV Vision XL weights: Entegra Coach RV Emblem weights: Entegra Coach RV Reatta weights: Entegra Coach RV Reatta XL weights: Entegra Coach RV Aspire weights: Entegra Coach RV Anthem weights: Entegra Coach RV Cornerstone weights:
Entegra Coach RV Vision weights
This section compiles the weights of all the Entegra Coach RV Vision models. The weights I’ve listed are:
The interior of the Entegra Coach Vision 27A. The Vision range of RVs is compact yet luxurious. This particular model will cost you around $100,000. Image: Entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Vision 26X weights
The floorplan for the stylish Entegra Coach Vision 26X . Image: Entegracoach.com
Entegra Coach Vision 26X weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
11,000
6,500
16,000
Entegra Coach Vision 27A weights
The floorplan for the stylish Entegra Coach Vision 27A . Image: Entegracoach.com
Entegra Coach Vision 27A weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
12,000
7,000 18,000
Entegra Coach Vision 29F weights

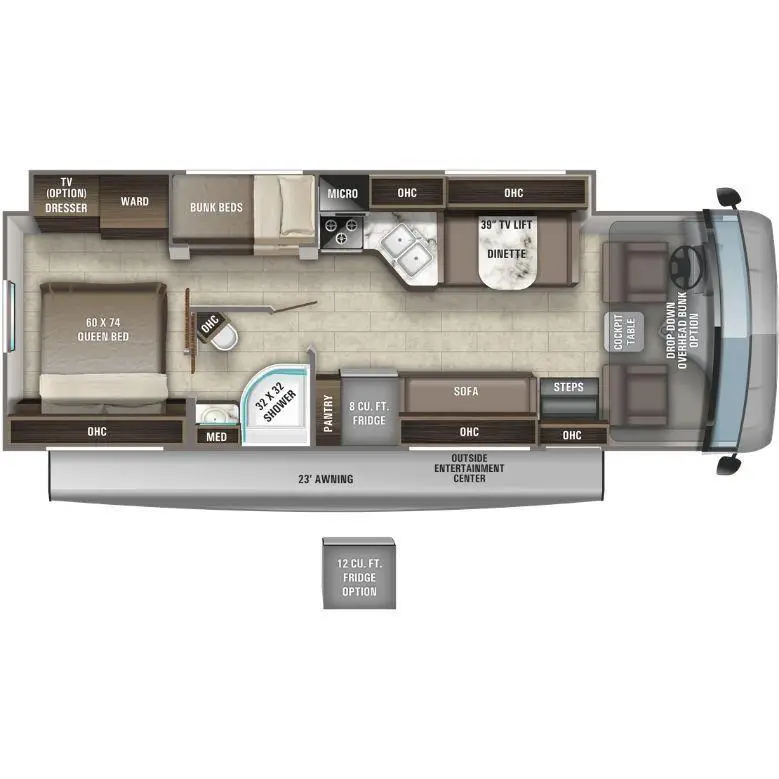

The floor plan for the fantastic Entegra Coach Vision 29F. Image: Entegracoach.com
Entegra Coach Vision 29F weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
12,000
7,000 18,000
Entegra Coach Vision 29S weights

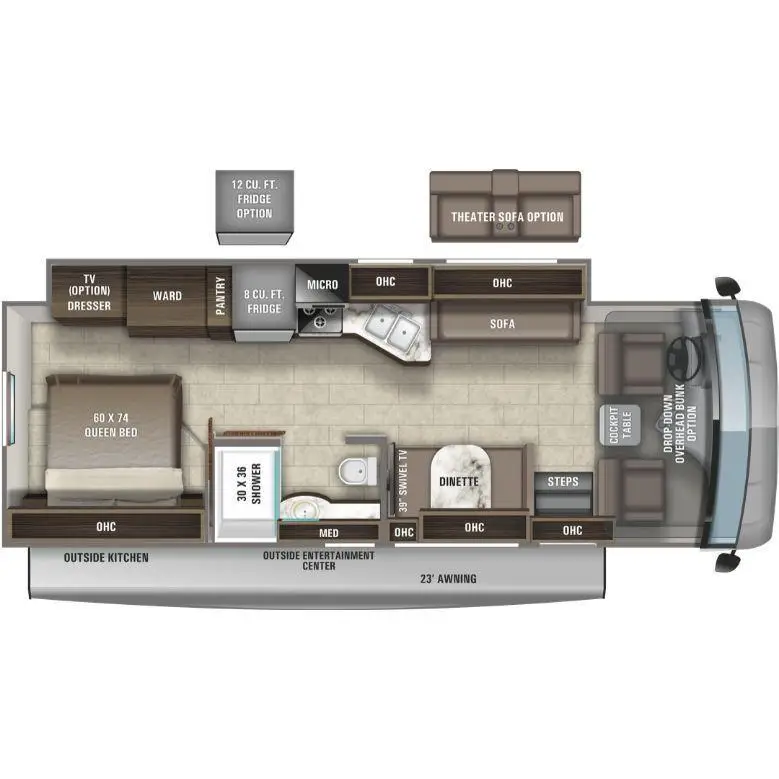

The floor plan for the Entegra Coach Vision 29S. This is one of the smaller, more cost-effective Class A motorhomes produced by Entegra. Image: entegracoach.com
Entegra Coach Vision 29S weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
12,000
7,000 18,000
Entegra Coach Vision 31V weights
The floor plan for the Entegra Coach Vision 31V. This beautiful Class A motorhome is one of the most cost-effective produced by Entegra. Image: entegracoach.com
Entegra Coach Vision 31V weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
12,000
7,000 18,000
Entegra Coach RV Vision XL weights
This section compiles the weights of all the Entegra Coach RV Vision XL models. The weights I’ve listed are:
The interior of the Entegra Coach Vision XL 34G. The Vision XL range of RVs are jam-packed with innovative features as standard. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Vision XL 34B weights

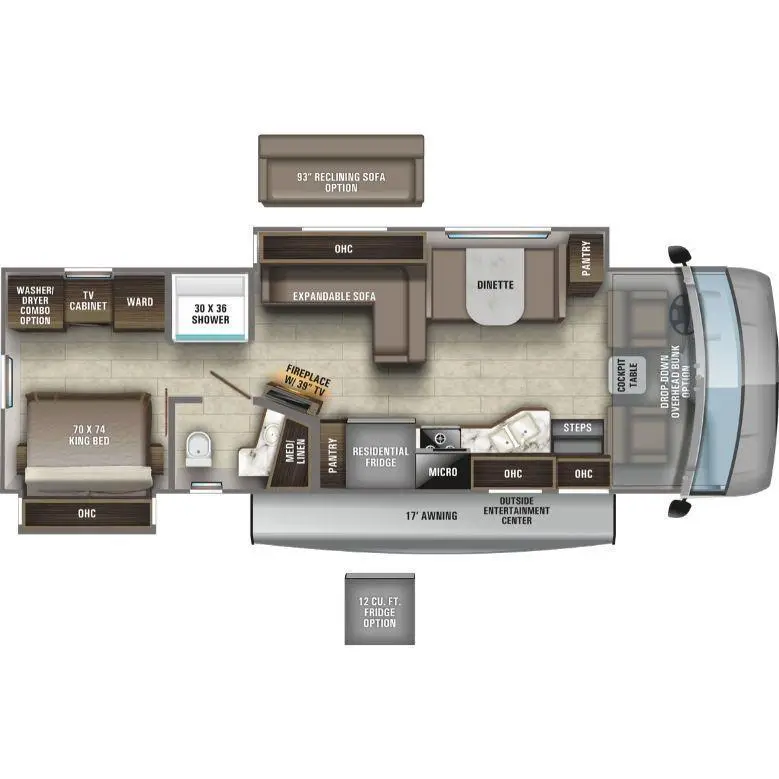

The floor plan for the Entegra Coach Vision XL 34B. Image: entegracoach.com
Entegra Coach Vision XL 34B weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
15,000
8,000
22,000
Entegra Coach Vision XL 34G weights
The floor plan for the marvellous Entegra Coach Vision XL 34G. Image: entegracoach.com
Entegra Coach Vision XL 34G weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
15,000
8,000
22,000
Entegra Coach Vision XL 36A weights
The floor plan for the marvellous Entegra Coach Vision XL 36A. Image: entegracoach.com
Entegra Coach Vision XL 36A weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
15,500
9,000
24,000
Entegra Coach RV Emblem weights
This section compiles the weights of all the Entegra Coach RV Emblem models. The weights I’ve listed are:
The interior of the 36H variant of the Entegra Coach Emblem range of RVs. The Emblem range are luxurious and spacious, containing a lot of typical ‘options’ as standard. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Emblem 36H weights
The floor plan of the Entegra Coach Emblem 36H. Image: entegracoach.com
Entegra Coach Emblem 36H weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
15,500
9,000
24,000
Entegra Coach Emblem 36T weights
The floor plan of the Entegra Coach Emblem 36T. Image: entegracoach.com
Entegra Coach Emblem 36T weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
15,500
9,000
24,000
Entegra Coach Emblem 36U weights
The floor plan of the Entegra Coach Emblem 36U. Image: entegracoach.com
Entegra Coach Emblem 36U weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
15,500
9,000
24,000
Entegra Coach RV Reatta weights
This section compiles the weights of all the Entegra Coach RV Reatta models. The weights I’ve listed are:

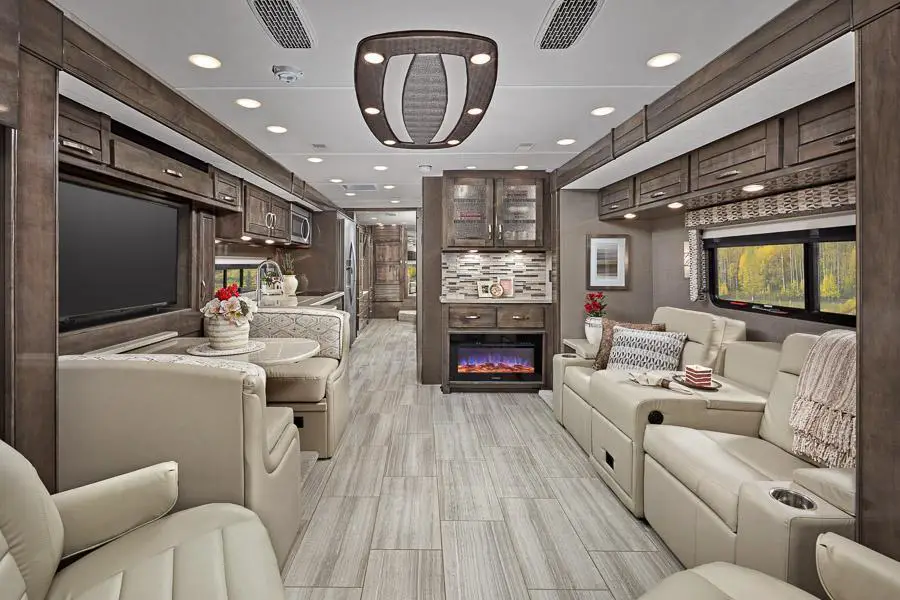

The interior of the Entegra Coach RV Reatta 37K. The Reatta range of RVs has modern, stylish interiors that embody luxury. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Reatta 37K weights

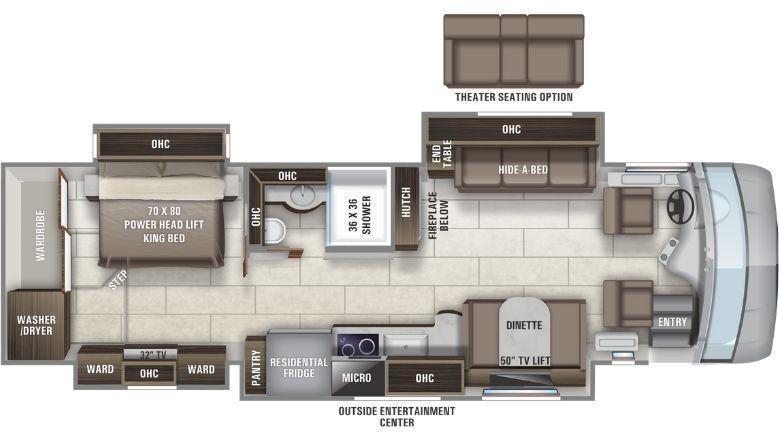

The floor plan of the Entegra Coach Reatta 37K. Image: entegracoach.com
Entegra Coach Reatta 37K weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
12,600 32,600
Entegra Coach Reatta 39BH weights

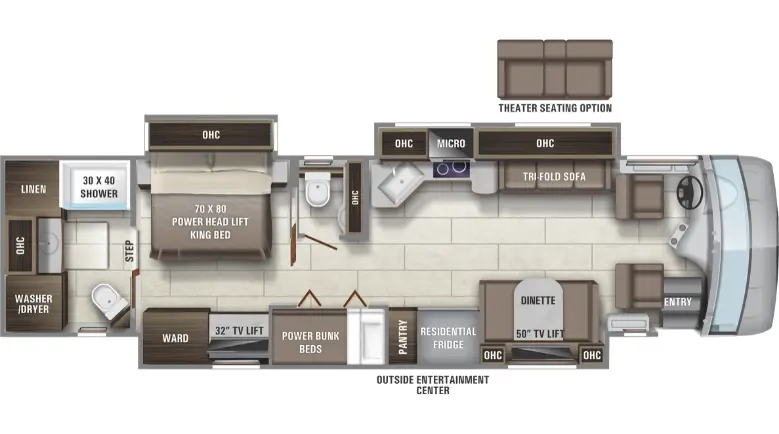

The floor plan of the Entegra Coach Reatta 39BH. Image: entegracoach.com
Entegra Coach Reatta 39BH weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
22,000
14,320
36,320
Entegra Coach Reatta 39T2 weights
The floor plan of the Entegra Coach Reatta 39T2. Image: entegracoach.com
Entegra Coach Reatta 39T2 weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
22,000
14,320
36,320
Entegra Coach RV Reatta XL weights
This section compiles the weights of all the Entegra Coach RV Reatta XL models. The weights I’ve listed are:
The interior of the Entegra Coach RV Reatta XL 39T2. The stylish interior is similar to that found within the other Reatta variations. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Reatta XL 37K weights

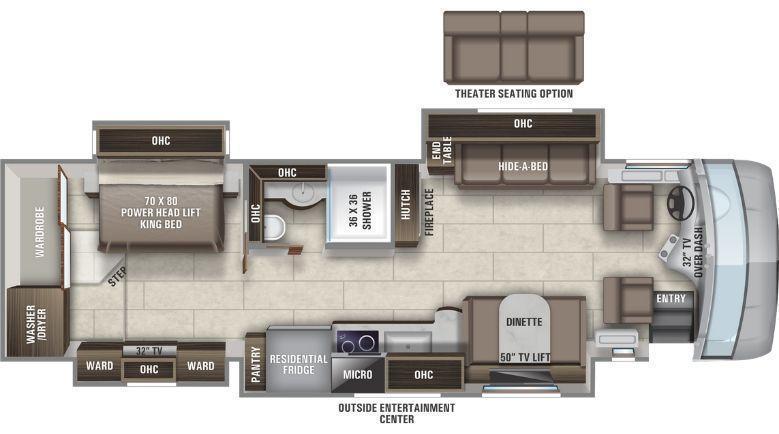

The floor plan of the Entegra Coach Reatta XL 37K. Image: entegracoach.com
Entegra Coach Reatta XL 37K weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
22,000
14,320
36,320
Entegra Coach Reatta XL 39BH weights
The floor plan of the Entegra Coach Reatta XL 39BH. Image: entegracoach.com
Entegra Coach Reatta XL 39BH weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
22,000
14,320
36,320
Entegra Coach Reatta XL 39T2 weights
The floor plan of the Entegra Coach Reatta XL 39T2. Image: entegracoach.com
Entegra Coach Reatta XL 39T2 weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
22,000
14,320
36,320
Entegra Coach Reatta XL 40Q2 weights

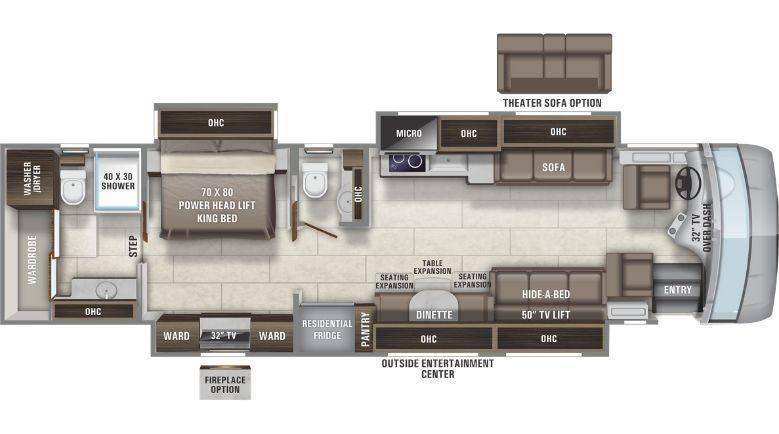

The floor plan of the Entegra Coach Reatta XL 40Q2 . Image: entegracoach.com
Entegra Coach Reatta XL 40Q2 weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
22,000
14,320
36,320
Entegra Coach RV Aspire dimensions
This section compiles the weights of all the Entegra Coach RV Aspire models. The weights I’ve listed are:
The image above shows the interior of the Entegra Coach Aspire 44W. The Aspire range of RVs are the embodiment of luxury. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Aspire 38M weights
The floor plan for the Entegra Coach Aspire 38M. Image: entegracoach.com
Entegra Coach Aspire 38M weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
24,000
17,000
41,000
Entegra Coach Aspire 40P weights
The floor plan for the Entegra Coach Aspire 40P. Image: entegracoach.com
Entegra Coach Aspire 40P weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
24,000
17,000
41,000
Entegra Coach Aspire 42DEQ weights

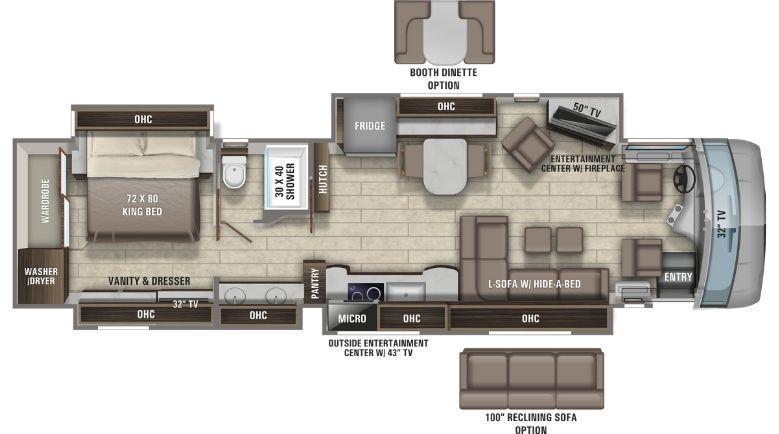

The floor plan for the Entegra Coach Aspire 42DEQ. Image: entegracoach.com
Entegra Coach Aspire 42DEQ weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
17,000 49,000
Entegra Coach Aspire 44B weights
The floor plan for the Entegra Coach Aspire 44B. Image: entegracoach.com
Entegra Coach Aspire 44B weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
17,000 49,000
Entegra Coach Aspire 44F weights

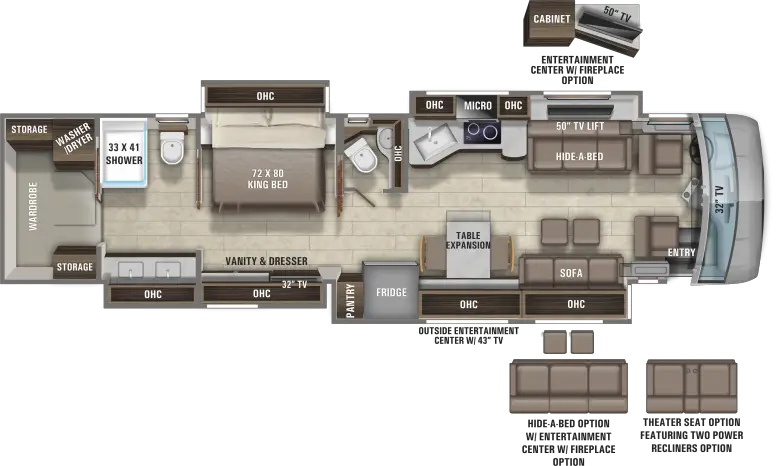

The floor plan for the Entegra Coach Aspire 44F. Image: entegracoach.com
Entegra Coach Aspire 44F weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
17,000 49,000
Entegra Coach Aspire 44R weights

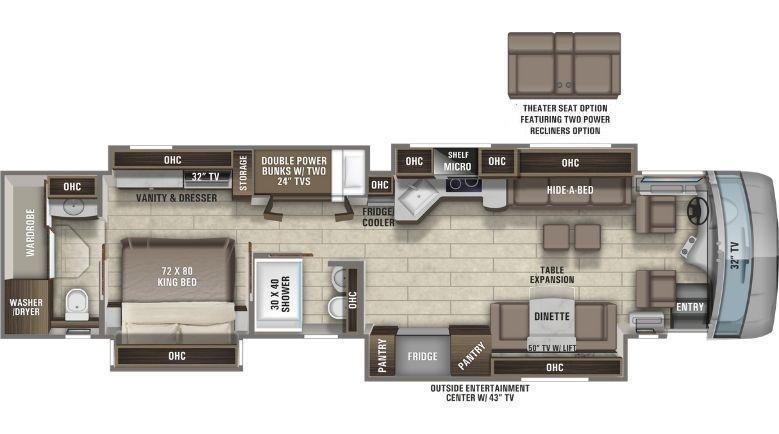

The floor plan for the Entegra Coach Aspire 44R. Image: entegracoach.com
Entegra Coach Aspire 44R weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
17,000 49,000
Entegra Coach Aspire 44W weights

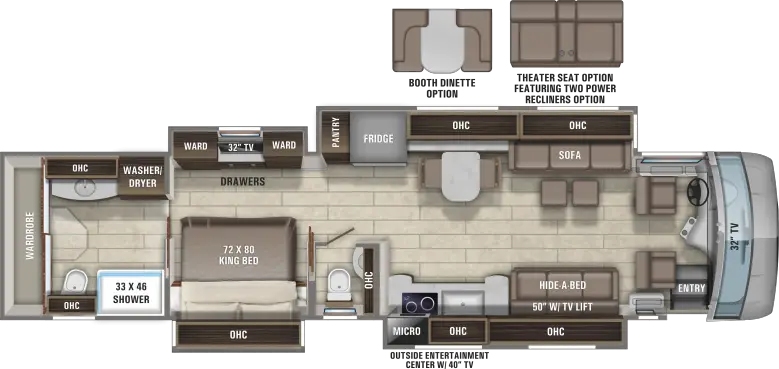

The floor plan for the Entegra Coach Aspire 44W. Image: entegracoach.com
Entegra Coach Aspire 44W weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
17,000 49,000
Entegra Coach Aspire 44Z weights
The floor plan for the Entegra Coach Aspire 44Z. Image: entegracoach.com
Entegra Coach Aspire 44Z weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
17,000 49,000
Entegra Coach RV Anthem weights
This section compiles the weights of all the Entegra Coach RV Anthem models. The weights I’ve listed are:

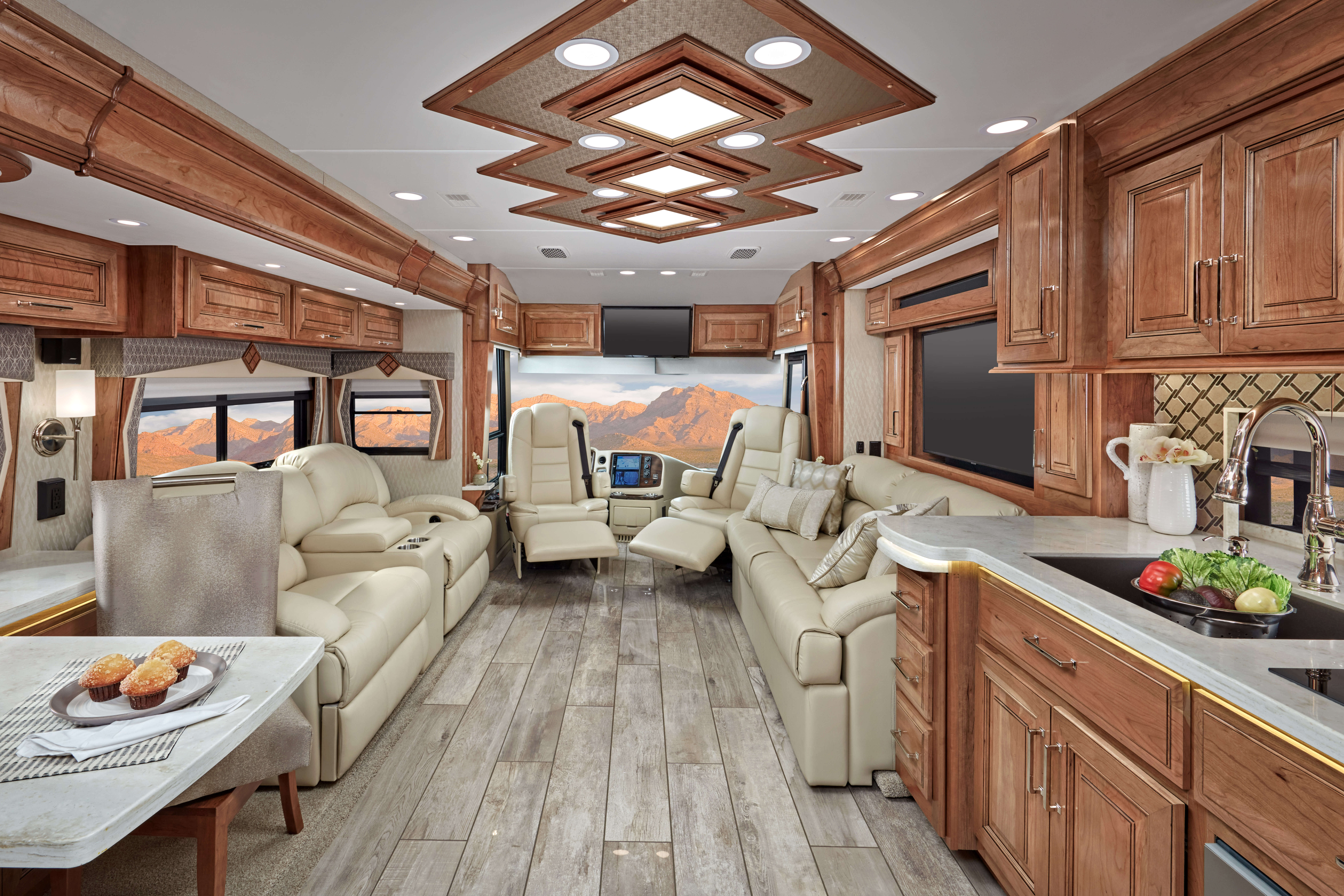

The interior of the Entegra Coach Anthem 44W. For one of the luxurious Anthem RVs, you’re likely to spend around $400,000 – $600,000. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Anthem 42DEQ weights

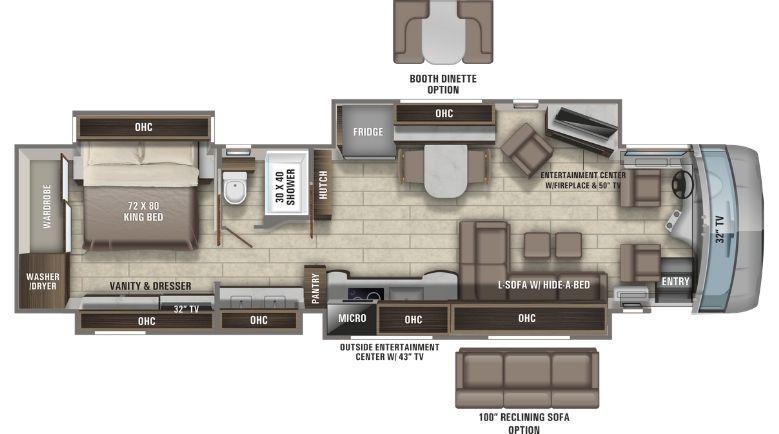

The floor plan for the fantastic Entegra Coach Anthem 42DEQ. Image: entegracoach.com
Entegra Coach Anthem 42DEQ weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 52,000
Entegra Coach Anthem 44B weights
The floor plan for the luxurious Entegra Coach Anthem 44B. Image: entegracoach.com
Entegra Coach Anthem 44B weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 52,000
Entegra Coach Anthem 44F weights

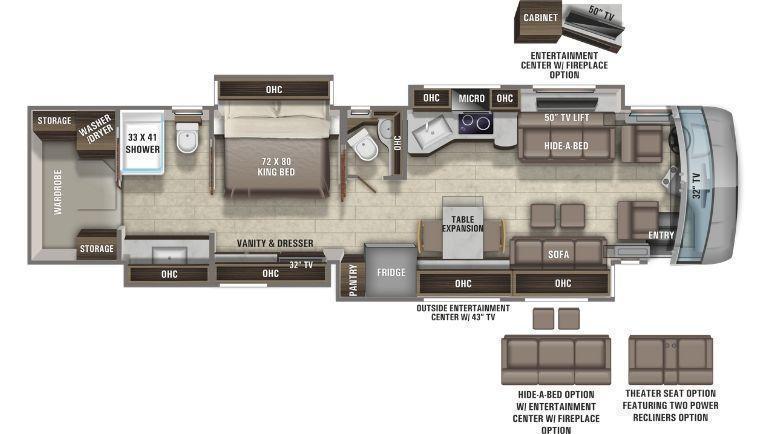

The floor plan for the luxurious RV Entegra Coach Anthem 44F. Image: entegracoach.com
Entegra Coach Anthem 44F weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 52,000
Entegra Coach Anthem 44R weights
The floor plan for the Entegra Coach Anthem 44R. Image: entegracoach.com
Entegra Coach Anthem 44R weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 52,000
Entegra Coach Anthem 44W weights

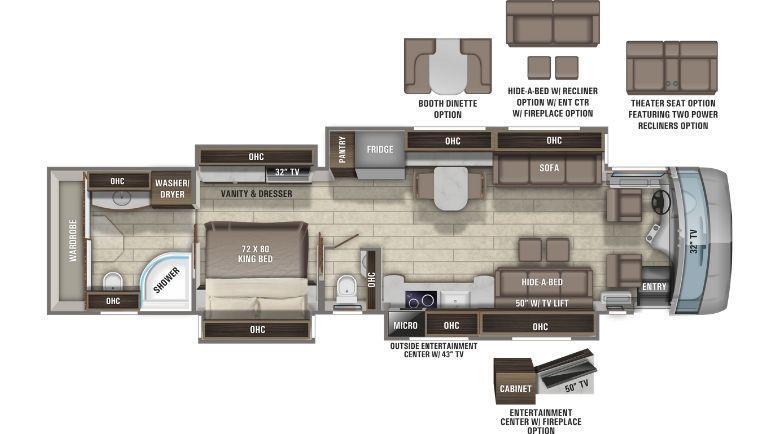

The floor plan for the Entegra Coach Anthem 44W. Image: entegracoach.com
Entegra Coach Anthem 44W weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 52,000
Entegra Coach Anthem 44Z weights

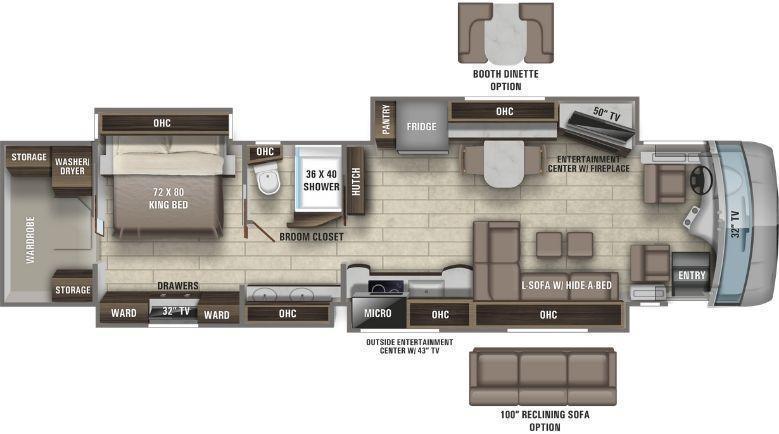

The floor plan for the Entegra Coach Anthem 44Z. Image: entegracoach.com
Entegra Coach Anthem 44Z weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 52,000
Entegra Coach RV Cornerstone weights
This section compiles the weights of all the Entegra Coach RV Cornerstone models. The weights I’ve listed are:

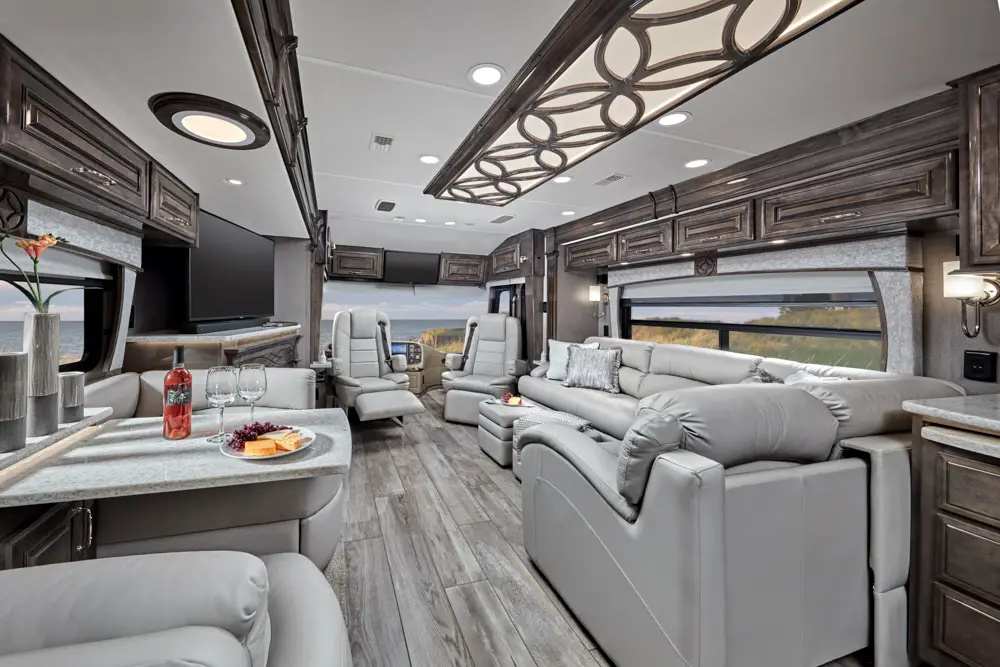

The extremely beautiful and luxurious Entegra Coach Cornerstone 45B. Expect to spend around $500,000 – $600,000 for the latest edition of this model. Image: entegracoach.com
Please select your RV/motorhome from the list below to be taken to the weights:
Entegra Coach Cornerstone 45B weights

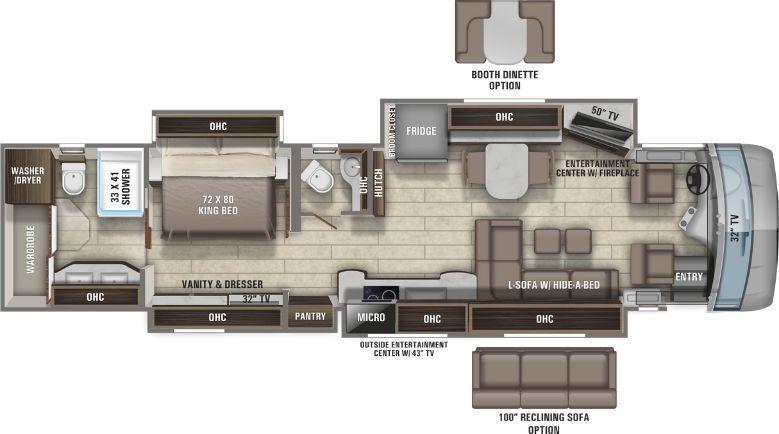

The floor plan of the Entegra Coachman Cornerstone 45B. Image: entegracoach.com
Entegra Coach Cornerstone 45B weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
Entegra Coach Cornerstone 45F weights
The floor plan of the Entegra Coach Cornerstone 45F. Image: entegracoach.com
Entegra Coach Cornerstone 45F weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
Entegra Coach Cornerstone 45R weights
The floor plan of the Entegra Coach Cornerstone 45R. Image: entegracoach.com
Entegra Coach Cornerstone 45R weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
Entegra Coach Cornerstone 45W weights

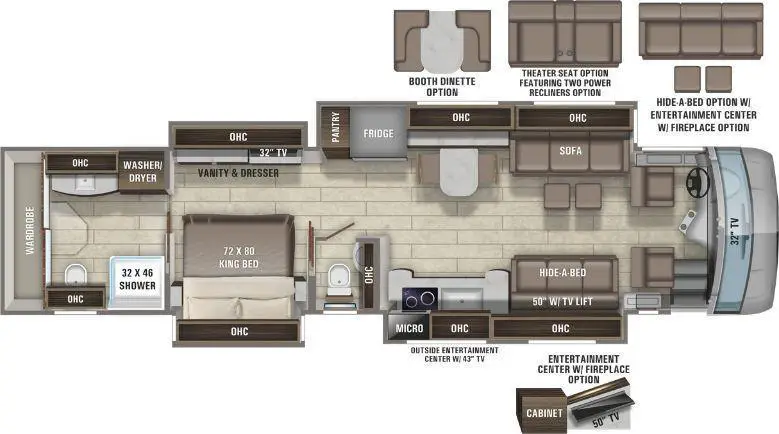

The floor plan of the Entegra Coach Cornerstone 45W. Image: entegracoach.com
Entegra Coach Cornerstone 45W weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
Entegra Coach Cornerstone 45X weights
The floor plan of the Entegra Coach Cornerstone 45X. Image: entegracoach.com
Entegra Coach Cornerstone 45X weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
Entegra Coach Cornerstone 45Y weights
The floor plan of the Entegra Coach Cornerstone 45Y. Image: entegracoach.com
Entegra Coach Cornerstone 45Y weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
Entegra Coach Cornerstone 45Z weights
The floor plan of the Entegra Coach Cornerstone 45Z. Image: entegracoach.com
Entegra Coach Cornerstone 45Z weights Rear GAWR (Ibs) Front GAWR (Ibs) GVWR (Ibs)
20,000
20,000 54,000
That wraps up the weights for the Class A motorhomes and RVs manufactured by Entegra Coach in 2021.
