When deciding on which caravan to buy, one of the first things you should look at is the dimension of the caravan and whether it suits your needs. This information about the vehicle is a common concern that buyers face due to the restrictions when it comes to the length, height and weight of the caravan. This is why it is important to know the dimensions of your caravan, especially since so many sites within the UK and Europe ask for the dimensions of your vehicle when booking.
Below, I have included three pieces of important information: overall length, overall height, and overall weight.
Select your Hobby caravan model from the list below to be taken to the relevant dimensions:
This section compiles the dimensions of the Hobby Ontour range of caravans. The dimensions I’ve listed are:
Overall length
Overall body weight
Overall height
A front to back view of the Hobby Ontour 460 DL. This caravan has everything you need for a great holiday, so you’ll be ready to hit the road right from the get-go. Image from: hobby-caravan.de
Select your model from the list below to go to the dimensions of your caravan:

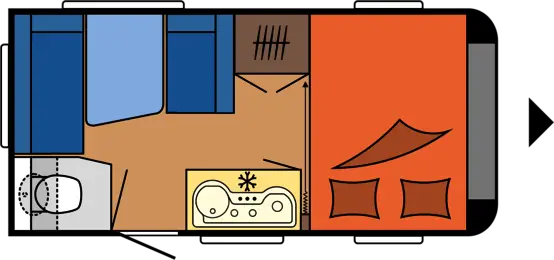

The floor plan of the Ontour 390 SF. Image from: hobby-caravan.de
390 SF dimensions
Overall length
Overall height
Overall body weight
5.78m
2.62m
1200kg
460 DL

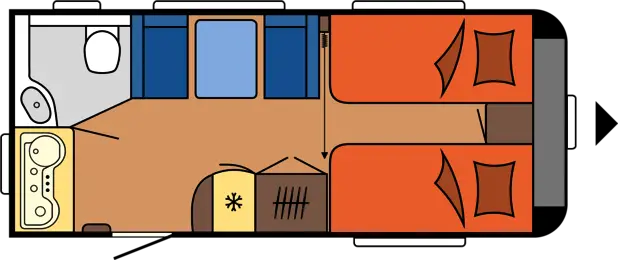

The floor plan of the Ontour 460 DL. Image from: hobby-caravan.de
460 DL dimensions
Overall length
Overall height
Overall body weight
6.60m
2.62m
1300kg
470 KMF
The floor plan of the Ontour 470 KMF. Image from: hobby-caravan.de
470 KMF dimensions
Overall length
Overall height
Overall body weight
6.71m
2.62m
1350kg
Hobby Deluxe Dimensions (Updated for 2021)
This section compiles the dimensions of the Hobby Deluxe range of caravans. The dimensions I’ve listed are:
Overall length
Overall body weight
Overall height
Front to rear view of the Hobby Deluxe 440 SF. With fifteen layouts to choose from, this motorhome can adapt to your individual travel requirements. Image from: hobby-caravan.de
Select your model from the list below to go to the dimensions of your caravan:
The floor plan of the Deluxe 400 SFe. Image from: hobby-caravan.de
400 SFe dimensions
Overall length
Overall height
Overall body weight
5.96m
2.62m
1300kg
440 SF
The floor plan of the Deluxe 440 SF. Image from: hobby-caravan.de
440 SF dimensions
Overall length
Overall height
Overall body weight
6.14m
2.62m
1300kg
455 UF
The floor plan of the Deluxe 455 UF. Image from: hobby-caravan.de
455 UF dimensions
Overall length
Overall height
Overall body weight
6.48m
2.62m
1350kg
460 UFe
The floor plan of the Deluxe 460 UFe. Image from: hobby-caravan.de
460 UFe dimensions
Overall length
Overall height
Overall body weight
6.63m
2.62m
1350kg
460 LU
The floor plan of the Deluxe 460 LU. Image from: hobby-caravan.de
460 LU dimensions
Overall length
Overall height
Overall body weight
6.75m
2.62m
1350kg
460 SFf
The floor plan of the Deluxe 460 SFf. Image from: hobby-caravan.de
460 SFf dimensions
Overall length
Overall height
Overall body weight
6.75m
2.68m
1350kg
490 KMF
The floor plan of the Deluxe 490 KMF. Image from: hobby-caravan.de
490 KMF dimensions
Overall length
Overall height
Overall body weight
6.88m
2.63m
1400kg
495 UL
The floor plan of the Deluxe 495 UL. Image from: hobby-caravan.de
495 UL dimensions
Overall length
Overall height
Overall body weight
7.12m
2.63m
1500kg
495 WFB
The floor plan of the Deluxe 495 WFB. Image from: hobby-caravan.de
495 WFB dimensions
Overall length
Overall height
Overall body weight
7.12m
2.63m
1500kg
515 UHK
The floor plan of the Deluxe 515 UHK. Image from: hobby-caravan.de
515 UHK dimensions
Overall length
Overall height
Overall body weight
7.53m
2.63m
1600kg
515 UHL
The floor plan of the Deluxe 515 UHL. Image from: hobby-caravan.de
515 UHL dimensions
Overall length
Overall height
Overall body weight
7.53m
2.63m
1600kg
540 UL
The floor plan of the Deluxe 540 UL. Image from: hobby-caravan.de
540 UL dimensions
Overall length
Overall height
Overall body weight
7.29m
2.63m
1500kg
540 KMFe
The floor plan of the Deluxe 540 KMFe. Image from: hobby-caravan.de
540 KMFe dimensions
Overall length
Overall height
Overall body weight
7.44m
2.63m
1600kg
545 KMF
The floor plan of the Deluxe 545 KMF. Image from: hobby-caravan.de
545 KMF dimensions
Overall length
Overall height
Overall body weight
7.42m
2.63m
1600kg
560 KMFe
The floor plan of the Deluxe 560 KMFe. Image from: hobby-caravan.de
560 KMFe dimensions
Overall length
Overall height
Overall body weight
7.51m
2.64m
1700kg
Hobby Excellent Dimensions (Updated for 2021)
This section compiles the dimensions of the Hobby Excellent range of caravans. The dimensions I’ve listed are:
Overall length
Overall body weight
Overall height
Front to rear view of the Hobby Excellent 495 UFe. This is a luxurious equipment package and an extensive range of layouts boasting spacious designs and cosy seating areas. Image from: hobby-caravan.de
Select your model from the list below to go to the dimensions of your caravan:
The floor plan of the Excellent 460 SL. Image from: hobby-caravan.de
460 SL dimensions
Overall length
Overall height
Overall body weight
6.75m
2.62m
1350kg
495 UFe
The floor plan of the Excellent 495 UFe. Image from: hobby-caravan.de
495 UFe dimensions
Overall length
Overall height
Overall body weight
6.76m
2.63m
1500kg
495 UL
The floor plan of the Excellent 495 UL. Image from: hobby-caravan.de
495 UL dimensions
Overall length
Overall height
Overall body weight
7.12m
2.63m
1500kg
495 WFB
The floor plan of the Excellent 495 WFB. Image from: hobby-caravan.de
495 WFB dimensions
Overall length
Overall height
Overall body weight
7.12m
2.63m
1500kg
540 WFU
The floor plan of the Excellent 540 WFU. Image from: hobby-caravan.de
540 WFU dimensions
Overall length
Overall height
Overall body weight
7.27m
2.63m
1500kg
540 WLU
The floor plan of the Excellent 540 WLU. Image from: hobby-caravan.de
540 WLU dimensions
Overall length
Overall height
Overall body weight
7.27m
2.63m
1500kg
540 UL
The floor plan of the Excellent 540 UL. Image from: hobby-caravan.de
540 UL dimensions
Overall length
Overall height
Overall body weight
7.29m
2.63m
1500kg
540 UFf
The floor plan of the Excellent 540 UFf. Image from: hobby-caravan.de
540 UFf dimensions
Overall length
Overall height
Overall body weight
7.34m
2.63m
1500kg
560 CFe
The floor plan of the Excellent 560 CFe. Image from: hobby-caravan.de
560 CFe dimensions
Overall length
Overall height
Overall body weight
7.51m
2.63m
1600kg
560 WFU
The floor plan of the Excellent 560 WFU. Image from: hobby-caravan.de
560 WFU dimensions
Overall length
Overall height
Overall body weight
7.56m
2.63m
1600kg
620 CL
The floor plan of the Excellent 620 CL. Image from: hobby-caravan.de
620 CL dimensions
Overall length
Overall height
Overall body weight
8.02m
2.62m
1900kg
650 UMFe
The floor plan of the Excellent 650 UMFe. Image from: hobby-caravan.de
650 UMFe dimensions
Overall length
Overall height
Overall body weight
8.32m
2.62m
1900kg
Hobby Excellent Edition Dimensions (Updated for 2021)
This section compiles the dimensions of the Hobby Excellent Edition range of caravans. The dimensions I’ve listed are:
Overall length
Overall body weight
Overall height
Front to rear view of the Hobby Excellent Edition 460 UFe. In this caravan the modern, Scandinavian-looking combination of bright colours and straight lines is accentuated by striking LED lighting. Image from: hobby-caravan.de
Select your model from the list below to go to the dimensions of your caravan:
The floor plan of the Excellent Edition 460 UFe. Image from: hobby-caravan.de
460 UFe dimensions
Overall length
Overall height
Overall body weight
6.63m
2.62m
1350kg
490 KMF
The floor plan of the Excellent Edition 490 KMF. Image from: hobby-caravan.de
490 KMF dimensions
Overall length
Overall height
Overall body weight
6.88m
2.63m
1400kg
495 UL
The floor plan of the Excellent Edition 495 UL. Image from: hobby-caravan.de
495 UL dimensions
Overall length
Overall height
Overall body weight
7.12m
2.63m
1500kg
545 KMF
The floor plan of the Excellent Edition 545 KMF. Image from: hobby-caravan.de
545 KMF dimensions
Overall length
Overall height
Overall body weight
7.42m
2.63m
1600kg
560 KMFe
The floor plan of the Excellent Edition 560 KMFe. Image from: hobby-caravan.de
560 KMFe dimensions
Overall length
Overall height
Overall body weight
7.51m
2.64m
1600kg
650 KMFe
The floor plan of the Excellent Edition 650 KMFe. Image from: hobby-caravan.de
650 KMFe dimensions
Overall length
Overall height
Overall body weight
8.32m
2.62m
1900kg
Hobby Prestige Dimensions (Updated for 2021)
This section compiles the dimensions of the Hobby Prestige range of caravans. The dimensions I’ve listed are:
Overall length
Overall body weight
Overall height
Front to rear view of the Hobby Prestige 560 WLU. Generous living and sleeping areas can be found in 13 unique layout solutions. Depending on the model, up to seven people can sleep in comfort in our incredibly spacious caravan. Image from: hobby-caravan.de
Select your model from the list below to go to the dimensions of your caravan:
The floor plan of the Prestige 540 UL. Image from: hobby-caravan.de
540 UL dimensions
Overall length
Overall height
Overall body weight
7.29m
2.63m
1500kg
560 FC
The floor plan of the Prestige 560 FC. Image from: hobby-caravan.de
560 FC dimensions
Overall length
Overall height
Overall body weight
7.51m
2.63m
1600kg
560 UL
The floor plan of the Prestige 560 UL. Image from: hobby-caravan.de
560 UL dimensions
Overall length
Overall height
Overall body weight
7.51m
2.63m
1600kg
560 WLU
The floor plan of the Prestige 560 WLU. Image from: hobby-caravan.de
560 WLU dimensions
Overall length
Overall height
Overall body weight
7.51m
2.63m
1600kg
560 WFU
The floor plan of the Prestige 560 WFU. Image from: hobby-caravan.de
560 WFU dimensions
Overall length
Overall height
Overall body weight
7.56m
2.63m
1600kg
620 CL
The floor plan of the Prestige 620 CL. Image from: hobby-caravan.de
620 CL dimensions
Overall length
Overall height
Overall body weight
8.02m
2.62m
1900kg
650 KFU
The floor plan of the Prestige 650 KFU. Image from: hobby-caravan.de
650 KFU dimensions
Overall length
Overall height
Overall body weight
8.37m
2.62m
1900kg
650 UFf
The floor plan of the Prestige 650 UFf. Image from: hobby-caravan.de
650 UFf dimensions
Overall length
Overall height
Overall body weight
8.32m
2.62m
1900kg
660 WFC
The floor plan of the Prestige 660 WFC. Image from: hobby-caravan.de
660 WFC dimensions
Overall length
Overall height
Overall body weight
8.32m
2.62m
1900kg
720 UKFe
The floor plan of the Prestige 720 UKFe. Image from: hobby-caravan.de
720 UKFe dimensions
Overall length
Overall height
Overall body weight
9.02m
2.63m
2200kg
720 KWFU
The floor plan of the Prestige 720 KWFU. Image from: hobby-caravan.de
720 KWFU dimensions
Overall length
Overall height
Overall body weight
9.04m
2.63m
2200kg
720 WLC
The floor plan of the Prestige 720 WLC. Image from: hobby-caravan.de
720 WLC dimensions
Overall length
Overall height
Overall body weight
9.04m
2.63m
2200kg
720 WQC
The floor plan of the Prestige 720 WQC. Image from: hobby-caravan.de
720 WQC dimensions
Overall length
Overall height
Overall body weight
9.04m
2.63m
2200kg
Hobby Maxia Dimensions (Updated for 2021)
This section compiles the dimensions of the Hobby Maxia range of caravans. The dimensions I’ve listed are:
Overall length
Overall body weight
Overall height
Front to rear view of the Hobby Maxia 660 WQM. This caravan boasts an open-plan layout, natural materials, perfectly coordinated colours and the Nordic concept of ‘hygge’. Modern and eye-catching, it offers a new kind of caravanning experience. Image from: hobby-caravan.de
Select your model from the list below to go to the dimensions of your caravan:
Since their release, the Bailey Alu-Tech caravans have been a popular option for many caravan users. This can be put down to the quality and strength of their construction. They have an interlocking...
Alu-Tech is an approach that Bailey has taken to improve the bodyshell construction of their caravans, which has an interlocking aluminium framework that works to clamp the body panels together,...
